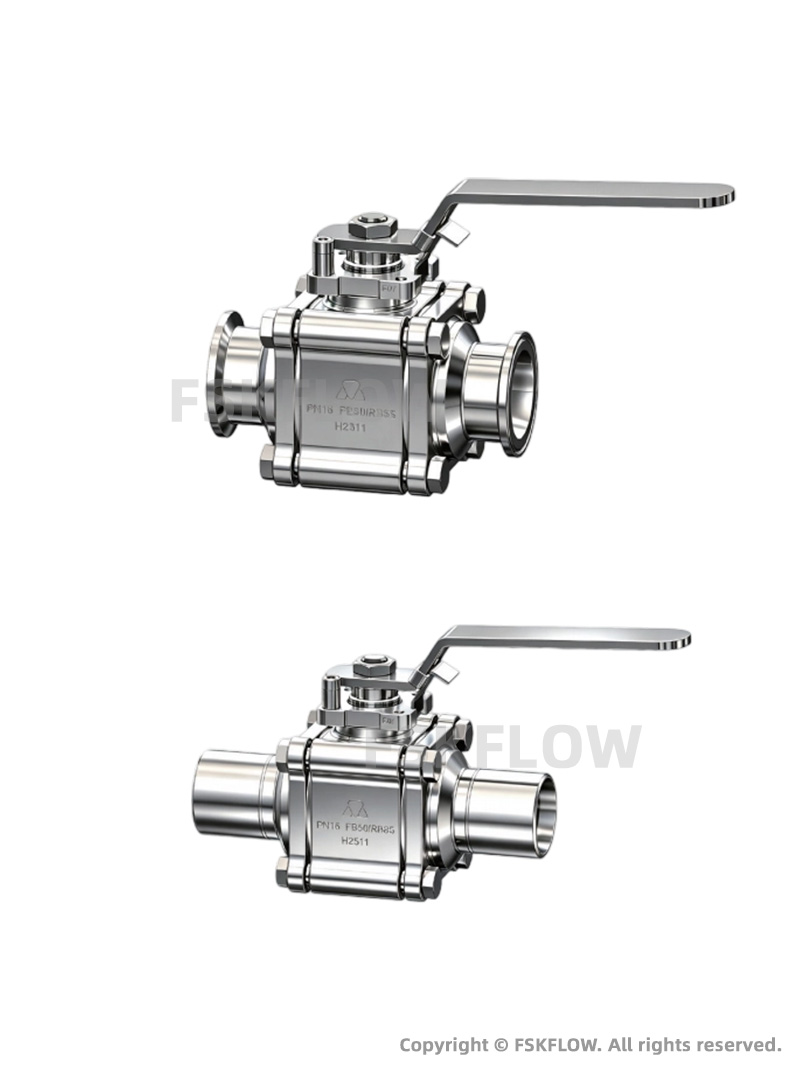

BAV1 Ball Valve
Publish time 2020-10-21 14:06
BAV1 Ball Valve
Size range:
| 1/2"-4"(DN15-DN100) |
Pressure rating:
| PN16、PN25、PN50 |
Temperature range:
| -196°C~+200°C(-320°F~+392°F)
|
| Construction: | Three-piece
|
| Materials: | Austenitic stainless steel: CF8M, CF8, CF3M, CF3, etc |
Standards & Specifications
Design & manufacturing:
| API6D, EN1626 |
Pressure-temperature rating:
| ASME B16.34, EN 12516-1 |
Cryogenic standard:
| BS 6364, MSS SP-134
|
| Inspection & testing: | API 598, API 6D, EN 12266-1
|
| Fire test: | ISO 10497,API 607, API6FA |
| Fugitive emission test: | ISO 15848-1, TA-Luft, Method 21 |
