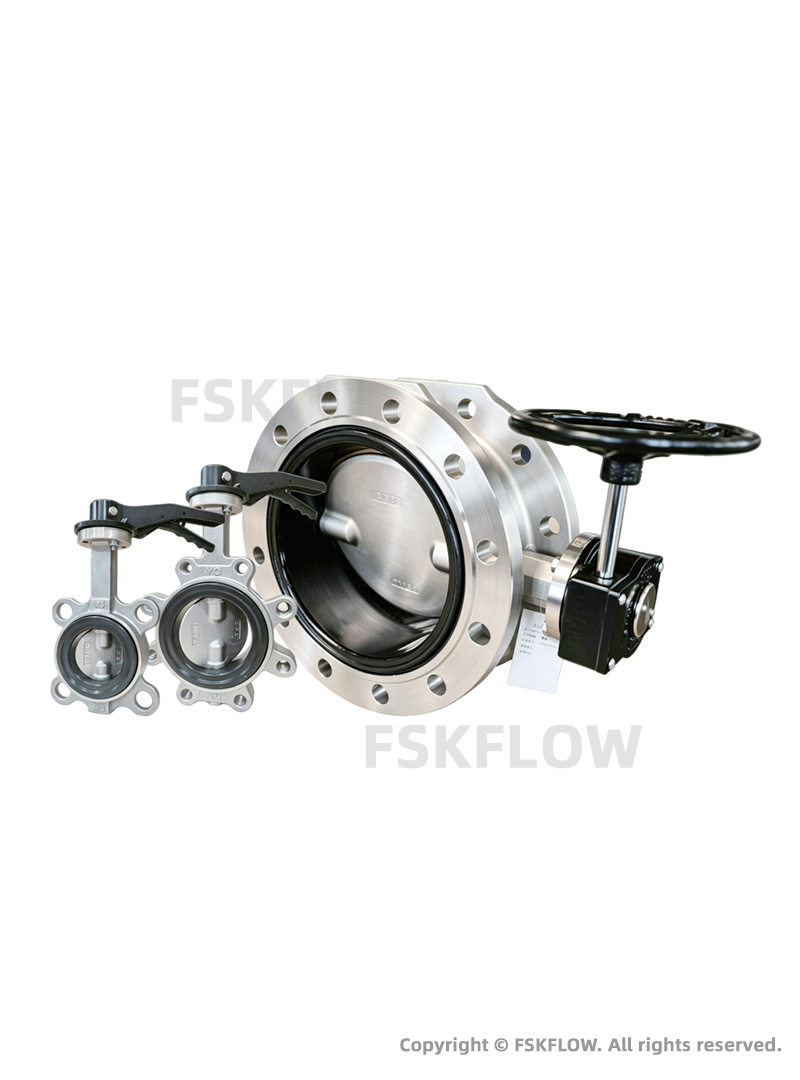

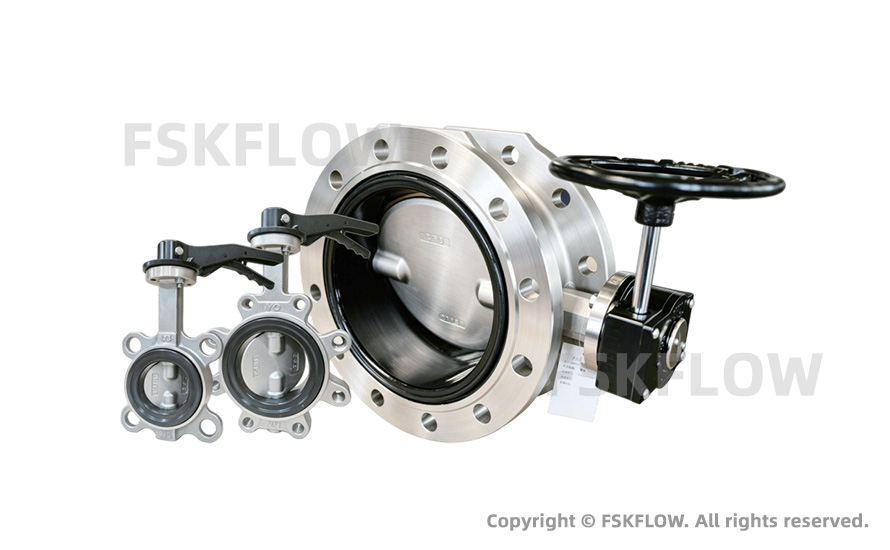

BV14 Stainless Steel Rubber-Lined Butterfly Valve
Design standard:
| API609, MSS SP-68, EN593 |
Connection standard:
| EN 1092-2, IS0 7005-2 |
Actuator mounting flange:
| ISO5211
|
| Face-to-face dimension: | EN558
|
Testing standard:
| EN12266-1
|
Working pressure:
| PN16(DN50-DN3000 2"-120"), PN25(DN50-DN900)
|
| Actuation: | Manual, electric, pneumatic, hydraulic |
Application
Body and disc materials: 304, 304L, 316, 316L.
Sealing materials selected according to service conditions (e.g. EPDM, FKM).
Suitable for data centers and similar applications.
Please consult the company for any special technical requirements.
