HOME >> Industry Valve >> BUV32 High Temperature Triple Offset Valve

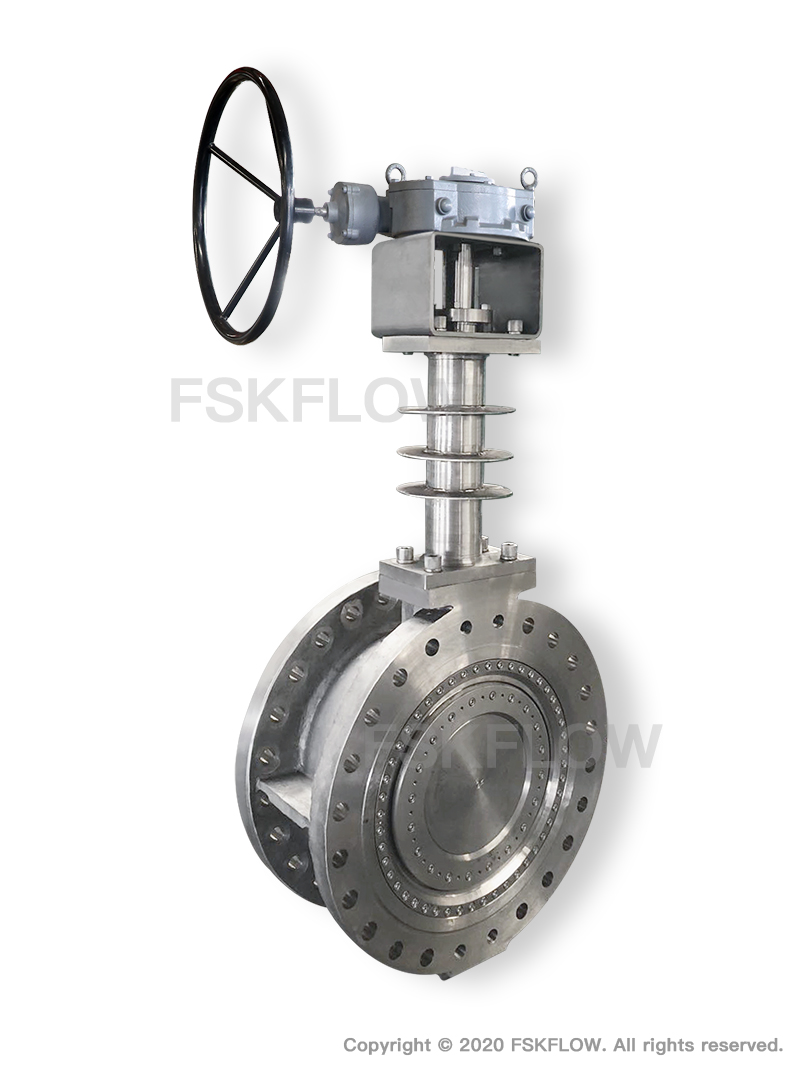

BUV32 High Temperature Triple Offset Valve
    Publish time 2020-09-25 13:29
BUV32 High Temperature Triple Offset Valve
BUV32 High Temperature Triple Offset Valve
Size range:
 3"-48"(DN80- DN1200)
Pressure Rating:
 Class150, Class300, Class600, PN25, PN40, PN63, PN100
Connection type:
 lug, double flanged, butt-welded.
Temperature range:
 -29℃~+750℃(-84℉~+1382℉)
Operation type:
 manual, pneumatic, electric, hydraulic, etc
Applicable range:
 Applicable to chemical, electric power and other industries; Often used in high temperature gas, steam conditions
Standards and Specifications
Design and manufacture standard:
 API 609, MSS SP-68, EN593, EN12569
Temperature and pressure rating:
 ASME B16.34, EN 12516-1
Low temperature standard:
 BS 6364,MSS SP-134
Mounting flange:  BS EN ISO 5211
Connection flange:
 ASME B16.5,ASME B16.47,ISO 7005,EN 1092-1
Face to face:
 API 609,MSS SP-68,ISO 5752,EN 558
Inspection and testing standard:
 API 598, ISO 5208, EN 12266-1, ANSI/FCI 70-2
Firesafetest:
 BS EN ISO 10497,API 607,API 6FA
Valve mark conform to:
 MSS SP-25,EN 19
